What size Ball Mount do I need?
Step 1:
Measure from the ground to the top of the hitch. |
 |
|
Step 2:
Level trailer, then measure from the ground to the top of the trailer coupler.
|
 |
|
Step 3:
Subtract the height of the hitch ball (most are 2-1/2" to 3" high) from Step 2. The example would be 18" minus 3" = 15".
|
|
Step 4:
The difference between Step 1 and Step 3 would be the "Drop" or "Rise" that is needed for your Towing System. The example would be a result of 8" (23" minus 15") Drop is required. If you do not have a trailer to measure with standard ball height is 15" to base of ball mount or 18" to the top of the ball.
|
|

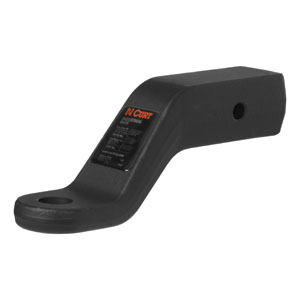

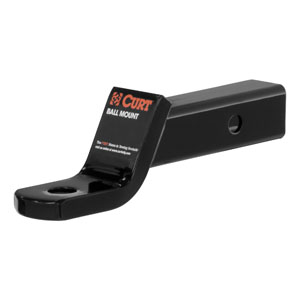

Ball Mounts By Class
|
Ball Mounts
|
Tongue Weight Maximum/ Gross Trailer Weight Maximum
|
| Class One - 1/4" |
|
TW: 200 lbs
GTW: 2000 lbs |
| Class Two - 1/4" |
|
TW: 300 lbs
GTW 3500 lbs |
| 2" Receiver |
|
Up to 15,000 lbs |
| 2 1/2" Receiver |
|
20,000 lbs |
|
Ball Mounts by Manufacturer
|
|
|
|
Trailer Balls
|
| There are normally three different size of trailer balls |
|
Size
|
Use
|
Max Load
|
| 1 7/8" |
Used for lighter applications such as tent trailers |
3500 lbs (with 1" Shank) |
| 2" |
Most common standard ball size |
7500 lbs (with 1" Shank) |
| 2 5/16" |
Heavy Duty used for large trailers |
30000 lbs (with 1 1/4" Shank) |
|
