Tee-one wiring requires no soldering, splicing or cutting. The electrical connections are plugged into your factory harness for a factory function and look. If a tail-light converter or fuse is required it is supplied in the kit.
Electrical Wiring Look Up by Manufacturer
| Brake Control |
|
|
 |

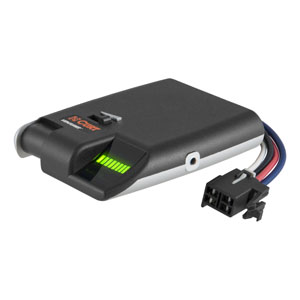

Curt Venturer Brake
Control 51110
- LED indicator lengthens as controller applies force
- Mount anywhere in vehicle
- No leveling required
- No internal moving parts
- Adjustable power and ramp time
- Compatible with anti-lock brakes & cruise control
- Operates 2-6 brakes
- Mounting hardware included
|
 |

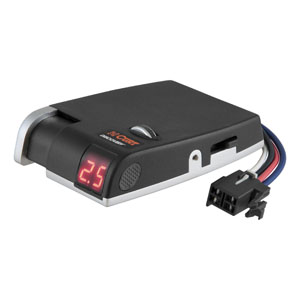

Curt Discovery Brake
Control 51120
- Digital display
- Mount anywhere in vehicle
- No leveling required
- No internal moving parts
- Fully adjustable power and ramp time
- Compatible with anti-lock brakes & cruise control
- Operates 2-8 brakes
- Mounting hardware included
|
 |

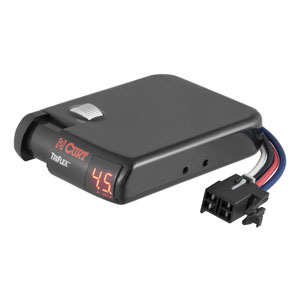

Curt Triflex Brake
Control 51140
- Triple-axis motion sensing for highly responsive, smooth stops
- Compact size
- Automatic leveling and calibration - No setup required
- Automatically adjusts brake output when going up or down a hill
- Sensitivity adjustment for varying trailer loads or driving conditions
- Compatible with anti-lock brakes and cruise control
- Operates 2-8 brakes
- Mounting hardware included
|
 |
Tekonsha P3 Brake
Control 90195
- 2, 4, 6,8 Brake Systems (1-4 axles)
- Inertia-activated proportianl braking
- Includes manual "Boost Feature" that appplies more inital trailer braking when towing heavier loads
- No manual leveling
- LCD display with multiple color/contrast options
- Unique pocket mount bracket and quick disconnect features allow for simple installation, removal and storage.
- Lifetime limited warranty.
|
 |
Prodigy RF 20192
- Trailer mounted power module
- 2,4,6, Brake Systems (1-3 Axles)
- Watertight unit includes an 8' long sealed, blade connector
- Inertia activated braking / self leveling
- Features the same primary sensor technology as the prodigy
- Includes manual 'Boost feature' that applies more initial trailer braking when towing heavier loads.
- Works proportianally in forward and reverse
- power module - limited to 15 yr waranty
- 7 blade connector limited to 1 year warranty
Hand Help Remote Control
- wireless communication with the brake control
- Plugs into vehicles 12 volt power accessory adapter.
- LED display of electrical connection, voltage delivery, power output and more
- Limited 5 year warrany
|
|
51130 Reflex Brake Controller w/ Advanced Dual-Axis Accelerometer
The Reflex brake controller can be mounted above or below the dash at
any angle vertically, but must stay within 20° horizontally
Why Do I Need a Brake Control?
Trailers with an combined trailer weight (including the load) over 3000 pounds should be fitted with brakes to comply with provincial road regulations. Any trailer with electric brakes needs a brake controller to activate the operation of the brakes. The brake controller sets the timing and level of power output to the trailer brakes when activated by pressing the brake pedal in the vehicle.
